Using reverse engineering data, Dangar can create exact 3D models or designs by incorporated engineering and tooling requirements such as: Shrink factors, draft angles, under cuts, and flange details. From art to part the PC-DMIS software program will capture the true geometry of the existing part(s) or create patterns, mold, and prototypes from supplied blueprints.

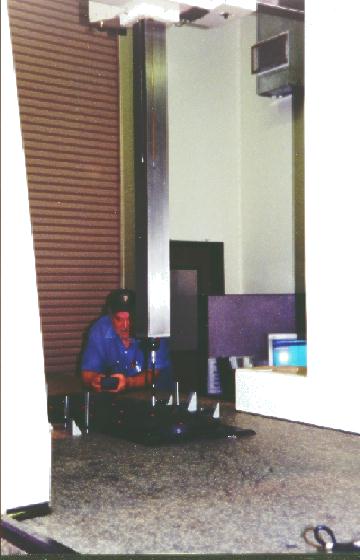

 Utilizing PC-DMIS, Dangar can create 3D geometry from digitized data. |

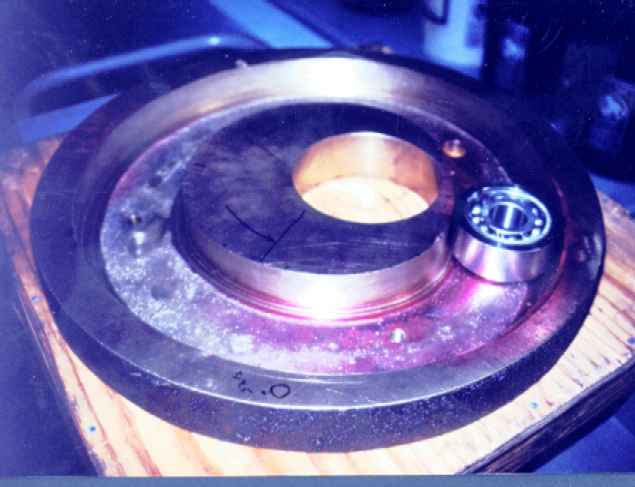

 Brass cam was digitized and geometry was supplied in IGES format. |
 Hatch door for Hummer was digitized using our PH-10 5-Axis head. |
 Master pattern digitized and reverse engineered to create a steel mold. |
