Aerospace

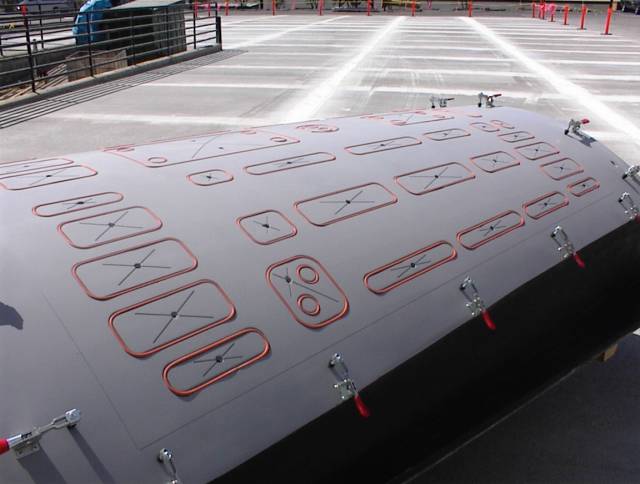

This vacuum fixture holds down a skin panel for a Gulfstream corporate jet during CNC trim and drill machining operations. Tool surface consists of aluminum-filled epoxy machined to an RMS 32 finish.

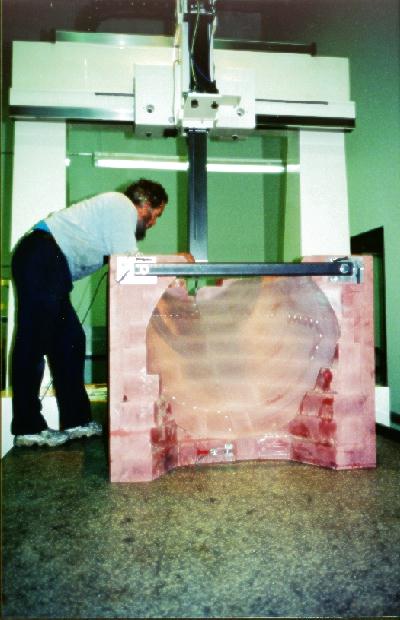

Super Gryphon Drone Aircraft mold being machined on G & L Bridge mill. Mold made from Urethane foam and Rayite-100 plaster based material.

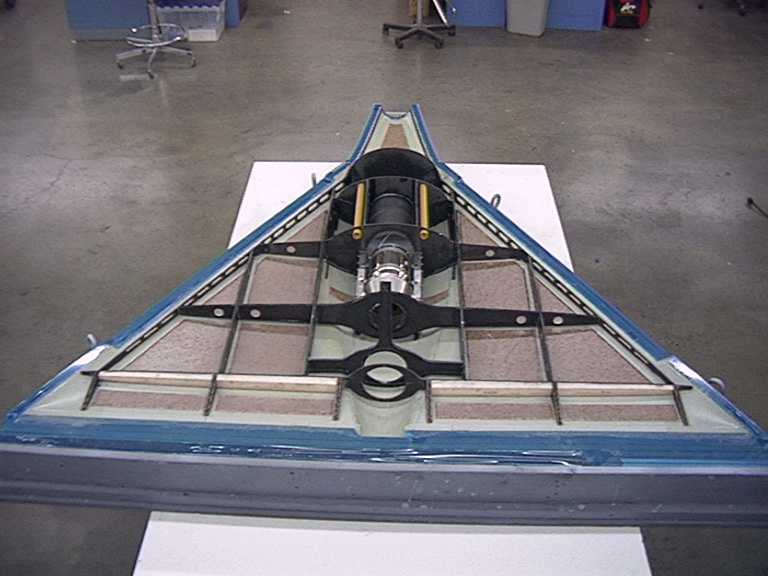

Internal parts for Super Gryphon Drone.

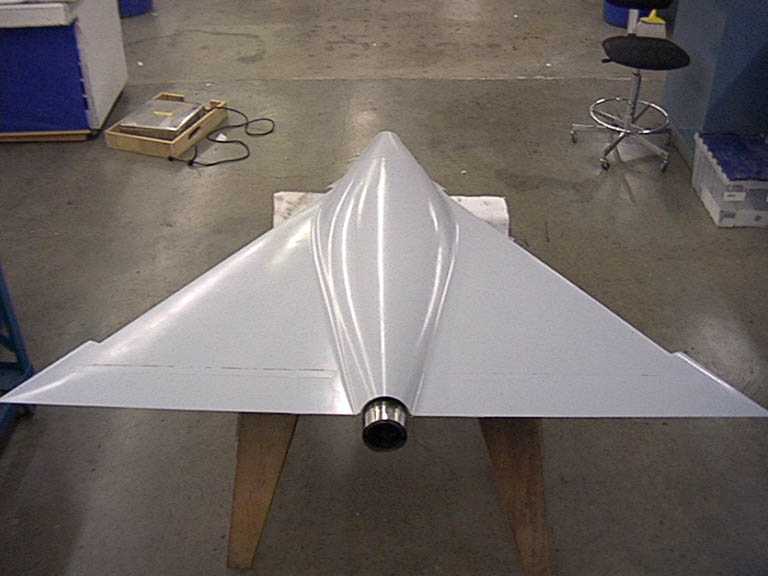

Super Gryphon Drone composite skin that was made using DANGAR designed and built tooling.



Finished turbine cnc machined out of astraloy forged material Part to be used on star wars laser technology

CNC machining of astraloy turbine wheel using  1/8" carbide endmills for blades. Holding tight tolerances is with a quality finish.

Turbine wheel blank made from a very hard exotic high nickel astraloy material.

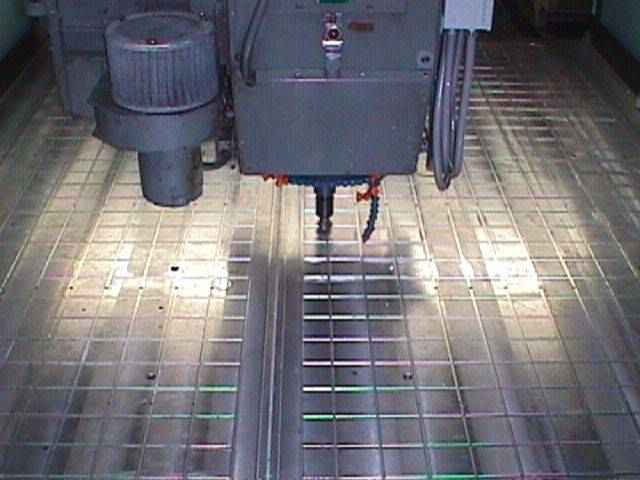

16' by 9' vacuum fixture designed and CNC machined to hold floor panels for the 757 aircraft while machining.

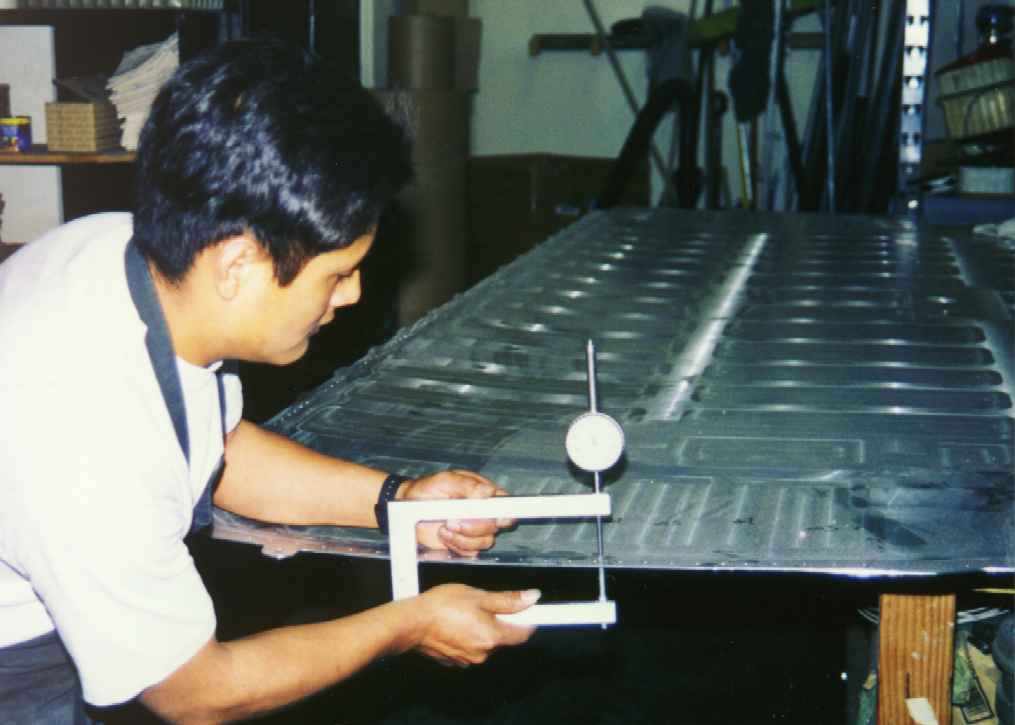

Inspection of thicknesses for 757 floor panels. Thicknesses range from 0.050 - 0.100".

Aluminum floor panel for the 757 aircraft
