CMM Inspection & Reverse Engineering Services

Utilizing PC-DMIS software we have established it's expertise in Reverse Engineering and 3D digitizing of complex parts. Using Reverse Engineering data, Dangar can create exact 3D models or designs, by incorporated engineering and tooling requirements such as shrink factors, draft angles, under cuts and flange details. Dangar's services can provide relief for those unique challenges.

WE NOW OFFER LASER SCANNING SERVICES SIZE UP TO FULL SCALE CARS

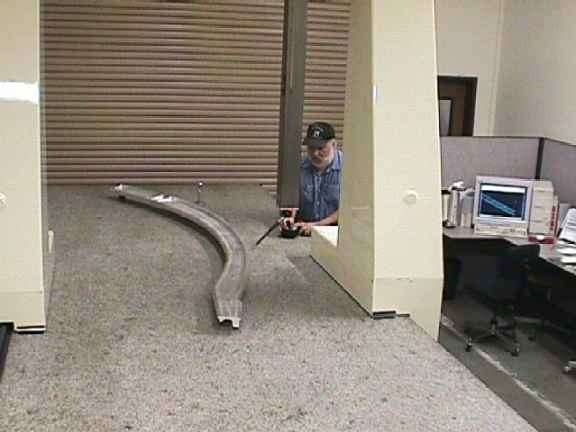

Reverse Engineering

Click on Image for Larger Photo.

Services Offered:

Dangar Complies with ISO 9002 and our quality program meets various MIL specs. Our machine is calibrated in accordance with ANSI / NCSL-Z540 and N.I.S.T. Traceability.
Various materials inspected: Castings, Forgings, Tooling Fixtures, Molds, Molded Parts, Aircraft Lofted Contours, Plastic Injected Parts, Templates, Patterns, Turbine Wheel Blades.
DCC and Manual CMM.
Lot Inspection
First Article Inspection
Scanning
Layout Inspection

CMM Features:

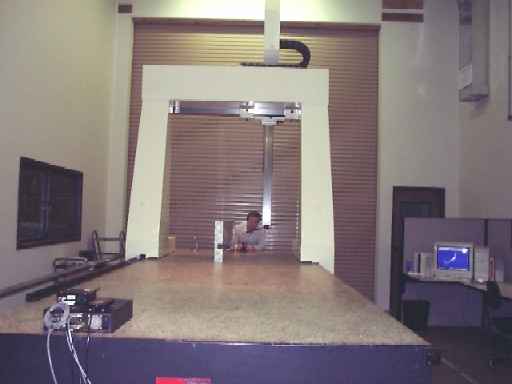

DEA CMM Travel Envelope - X 161.75", Y 54.0", Z 53.375"

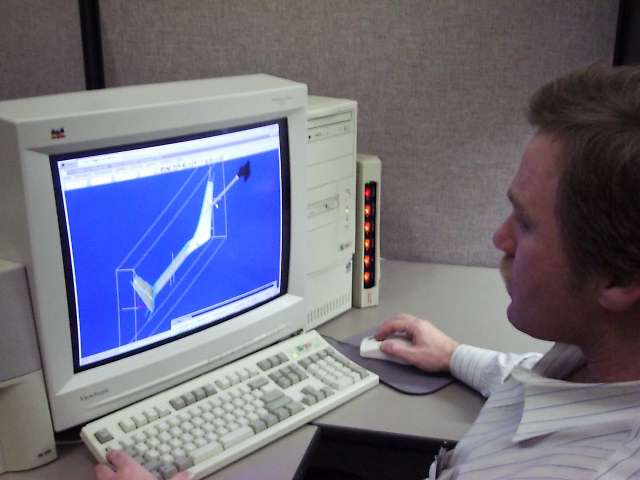

PC-DMIS / 3-D Inspection Software
Curve and Surface Inspection
Renshaw High Torque PH10 5-Axis Probe
Laser Calibrated
Enclosed 24 Hour Temperature Control Room

Customer Approvals : Northrop-Grumman, Lockheed-Martin, Litton, Volvo, BMW, Volkswagen and Pilkington Aerospace.
